Name: Three-Dimensional Composite Drainage Net - High-Efficiency Drainage with Excellent Chemical and UV Resistance
Brand: Changsha Jian-Yi New Material Co., Ltd.
SKU: 4mm-8mm
Price: 1.96 USD
Availability: InStock

Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Farbe: Schwarz

Chemische Beständigkeit: Exzellent

Breite: 2m-6m

UV-Beständigkeit: Exzellent

Länge: 50m-100m

Zugfestigkeit: ≥16kN/m

Gewicht: ≥ 200 g/m2

Anwendung: Deponien, Straßenboden, Eisenbahn, Tunnel, Stützmauern

Hervorheben:

High-Efficiency Drainage Net

Chemical Resistant Drainage Geonet

UV Resistant Composite Drainage Network

Grundinformation

Herkunftsort: China

Markenname: JianYi

Zertifizierung: ISO 9001 CE

Modellnummer: 4mm-8mm

Zahlung und Versand AGB

Lieferzeit: 7-15 Tage

Zahlungsbedingungen: L/c, d/p

Versorgungsmaterial-Fähigkeit: 600t/month

Galerie

Three-Dimensional Composite Drainage Net - High-Efficiency Drainage with Excellent Chemical and UV Resistance

Produkt-Beschreibung

Three-Dimensional Composite Drainage Net - High-Efficiency Drainage and Filtration Material

Product Introduction

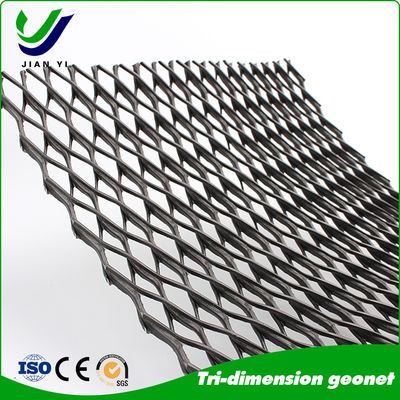

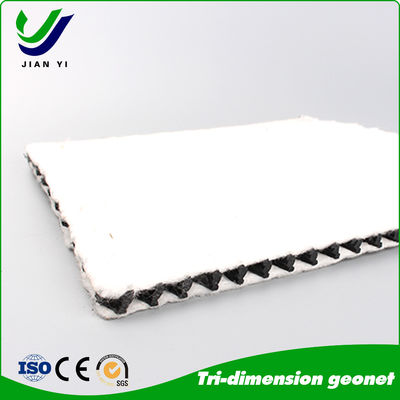

Our Three-Dimensional Composite Drainage Net combines a three-dimensional plastic mesh core with two layers of non-woven geotextile. The mesh core features a high void ratio that creates efficient drainage channels for water, while the geotextile layers provide superior filtration to prevent soil particles from entering and clogging the drainage system. This engineered solution delivers exceptional drainage performance and filtration efficiency, effectively addressing water accumulation issues in various engineering applications.

Product Features

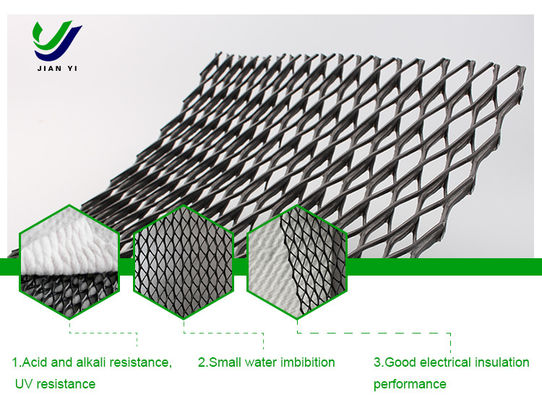

High Drainage Efficiency: The three-dimensional mesh core features over 90% void ratio, providing substantial flow capacity with drainage speeds 5-10 times faster than traditional materials.
Superior Filtration Performance: Non-woven geotextile with optimized pore size effectively filters soil particles, prevents drainage channel blockage, and ensures long-term stable performance.
Exceptional Compressive Strength: The stable three-dimensional structure maintains optimal drainage performance even under high pressure conditions.
Corrosion and UV Resistance: Manufactured from high-quality HDPE material, resistant to chemical corrosion and ultraviolet radiation for extended service life.

Application Fields

Landfill leachate drainage systems
Highway and railway subgrade drainage
Slope and embankment drainage
Basement exterior wall drainage
Sports field and recreational area drainage
Soft soil foundation treatment
Coastal reclamation and marine projects
Other applications requiring efficient drainage solutions

Product Installation Guidelines

Base Surface Preparation: Ensure the base surface is flat, clean, and free of sharp objects. Level uneven areas and compact the surface to prevent damage to the drainage net.
Unfolding and Laying: Position the drainage net with the geotextile layer facing the soil. Lay from lower to upper sections along slopes, and from upstream to downstream for horizontal installation. Maintain 15-20cm overlap between adjacent nets.
Fixing and Connection: Secure the drainage net to the base surface using fixing nails at 1-1.5m intervals. Connect overlap areas with staples or adhesive to ensure tight, leak-proof joints.
Backfilling: After installation, promptly backfill with fine soil or sand. Compact in layers and avoid direct heavy machinery traffic on the drainage net.

Größe und Tag:
